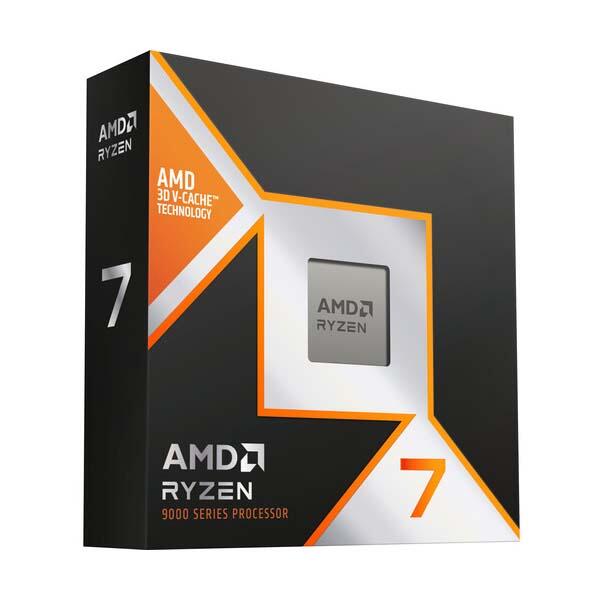

AMD RYZEN 7 9800X3D - 8 Core AM5 Gaming Processor

Harness the ultimate gaming edge with AMD Ryzen™ 7 9800X3D Processor. Enjoy faster gaming with 2nd gen AMD 3D V-Cache™ technology for low latency.

For gamers looking to upgrade their socket AM5 motherboards, the Ryzen 7 9800X3D 4.7 GHz Eight-Core AM5 Processor is ready to let you boost frame rates and graphics settings in the latest triple-A titles. Like other X3D CPUs, the 9800X3D features AMD 3D V-Cache technology designed to boost gaming performance by positioning its 96MB of ultra-fast stacked L3 cache close to the cores. Built upon Zen 5 architecture and providing eight-core, sixteen-thread processing, the 9800X3D can achieve a 4.7 GHz base clock speed, with a max boosted clock of 5.2 GHz. Other advanced technologies that are supported include PCIe 5.0 for high-end graphics cards and SSDs, and up to 192GB of speedy DDR5-5600 memory.

AMD EXPO

Ryzen-optimized AMD EXPO (Extended Profiles for Overclocking) profiles provide a user-friendly method to overlocking your DDR5 memory when using the Ryzen 7 9800X3D with your socket AM5, increasing software load speeds and boosting overall gaming performance.

Additional Features

Unlocked to support CPU overclocking
120W TDP (Thermal Design Power) with no active cooling provided
Integrated Radeon graphics
Increase CPU speed with Precision Boost 2

Specifications

Name : AMD Ryzen™ 7 9800X3D
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Consumer Use : Yes
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 8
Multithreading (SMT) : Yes
# of Threads : 16
Max. Boost Clock : Up to 5.2 GHz
Base Clock : 4.7 GHz
L1 Cache : 640 KB
L2 Cache : 8 MB
L3 Cache : 96 MB
Default TDP : 120W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C

*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps) Ports : 4
Native USB 2.0 (480Mbps) Ports : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed

2x1R

DDR5-5600

2x2R

DDR5-5600

4x1R

DDR5-3600

4x2R

DDR5-3600

ECC Support : Yes (Requires mobo support)

Graphics Capabilities

Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes

Supported Technologies

AMD EXPO™ Technology , AMD Ryzen™ Technologies
